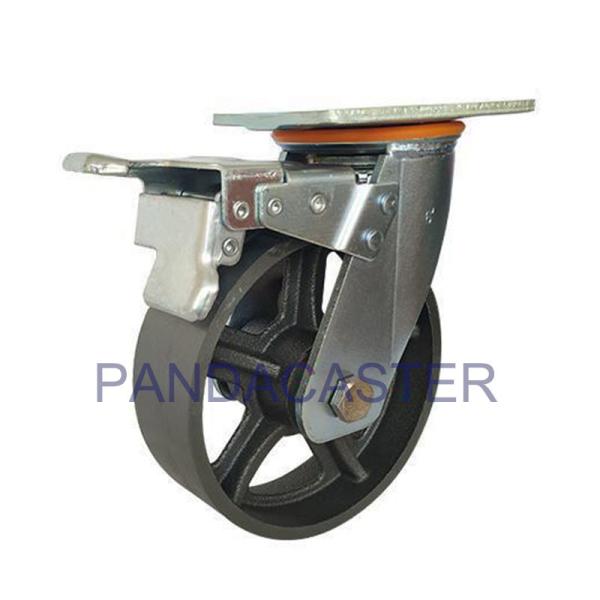

Heavy Duty Cast Iron Wheel High Temperature Resistant Casters With Brake Device

  • 1
  • 2

Brand Name : Panda Caster

Model Number : X150CI-B

Certification : SGS, ISO

Place of Origin : Guangdong, China

MOQ : 40 pc

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 50000pc/month

Delivery Time : 2-4 weeks

Packaging Details : By Cartons

Type : Swivel Top Plate Caster

Capacity : 400KG /880 Lbs

Wheel Diameter : 6 inch

Wheel Width : 2 inch

Wheel Material : Cast Iron

Max. Tolerate Temperature : 300 ℃

Total Height : 193mm

Housing : Pressed Steel 5.75mm Thickness

Wheel Bearing : Roller Bearing

Finish : Bright Zinc Plated

Brake Device : Double Lock

Contact Now

6 Inch Heavy Duty High Temperature Resistant Cast Iron Wheel Swivel Casters With Total Brake Device

Model: X150CI-B

Product Specifications

Wheel Diameter 6 inch Wheel Width 2 inch
Load Capacity 400Kg /880Lbs Total Height 193mm
Wheel Material Cast Iron Max. Tolerable Temperature 300℃
Caster Type Swivel Caster Fixing Type Top Plate
Plate size 115x100mm Fixing Hole Spacing 85x72mm
Bearing Steel Roller Finish Zinc Plated

Product Features

1. This caster adopts cast iron wheel, which can be used in high-temperature environment

2. The double lock brake device can hold the wheel and swivel bearing firmly

3. Bracket of the caster is 5.75mm thick which ensures the strength to load heavy-duty cargo

4. Full dual ball hardened raceway for the swivel bearing, axle with a lock washer and nut

5. Wheel bearings adopt steel roller bearings, which tolerate 300℃ temperature

6. Zinc-plated finish for the caster bracket

Product Application

This Caster is vastly used on medium-duty to heavy-duty carts, hand trucks, working benches, portable

workstations, construction equipment, laundry carts, and platform trucks in high termperature environment.

Heavy Duty Cast Iron Wheel High Temperature Resistant Casters With Brake Device

Product Packing

Packed By Cartons

Carton Size: 35x35x21cm or as required

QTY Per Carton: 6 pcs/Cartons

Customer Logo can be printed on cartons

Heavy Duty Cast Iron Wheel High Temperature Resistant Casters With Brake Device
